Today’s project is all aboutIoT Based Patient Health Monitoring System on ESP8266/ESP32 using MAX30100/102 Pulse Oximeter, DS18B20 temperature, and DHT11 Humidity & Temperature sensors.This system will Monitor the Health Status of Patient on ESP8266/ESP32 Web Server.

Table Of Contents

  1. Overview: Patient Health Monitoring on ESP8266/EP32
  2. Components Required
    • MAX30100 Pulse Oximeter Sensor
    • DS18B20 Temperature Sensor
  3. Circuit Diagram: Patient Health Monitoring System on ESP8266/ESP32
  4. Source Code/Program
    • Patient Health Monitoring System Program Code for ESP8266
    • Patient Health Monitoring System Program Code for ESP32
  5. Project Demonstration
    • Conclusion

Overview: Patient Health Monitoring on ESP8266/EP32

Healthcare technology is very popular in today’s pandemic situation due to coronavirus. Actually, with the help of IoT healthcare technology is rapidly being revolutionized. Keeping track of your patient’s health status at home is a difficult task due to our busy schedule and our daily work. Especially, elderly patients should be monitored periodically. So we propose an innovative system that makes this task easily automated. Our equipment uses a smart webserver to track patient health using this tracking system. Hence, patient health parameters such as body temperature, heart rate, blood oxygen levels as well as room temperature and humidity can be monitored.

IoT Based Patient Health Monitoring System Using ESP8266/ESP32 Web Server (1)

In this project, we will learn how to build an IoT-based patient health monitoring system using ESP8266/ESP32. We can measure Heart Rate/Pulse (BPM) as well as Blood Oxygen Level (SpO2) using the MAX30100 /102 pulse oximeter sensor. We use the DS18B20 temperature sensor to measure body temperature. Similarly, the patient needs to be kept in a room having a certain temperature and humidity level. Hence, the patient does not feel uncomfortable in the room. To do this we also need to monitor the room temperature and humidity. So we use DHT11 Humidity and Temperature sensor.

Additionally, ESP8266 based IoT Health Care Panic Alarm for Elderly Folks projects makes this project more advanced. This system will alert/notifies you when your patient needs your help.

Components Required

The following are the components required for making patient health monitoring on the ESP board. All the components are easily available.

S.NComponents NameDescriptionQuantityIoT Based Patient Health Monitoring System Using ESP8266/ESP32 Web Server (2)
1ESP32 BoardESP32 ESP-32S Development Board1https://amzn.to/3sfU0or
2NodeMCUESP8266 12E Development Board1https://amzn.to/3mTuL95
3DS18B20 SensorDS18B20 One-Wire Waterproof Temperature Sensor1https://amzn.to/3sXDWbV
4DHT11 SensorDHT11 Digital Humidity Temperature Sensor1https://amzn.to/35QzwcT
5Pulse Oximeter SensorMAX30100/MAX30102 I2C Pulse Oximeter Sensor1https://amzn.to/3sjdrNc
4Jumper WiresMale to Male Jumper Wires8https://amzn.to/2JWSR44
5BreadboardSolderless Breadboard MIni1https://amzn.to/3n33uRT

MAX30100 Pulse Oximeter Sensor

IoT Based Patient Health Monitoring System Using ESP8266/ESP32 Web Server (3)

What is MAX30100 Pulse Oximeter Sensor?

See Also
7 Best National Parks Near Los Angeles, CA - The National Parks ExperienceMeet all Dr. Pol staff in 2023, who left the show?The US Animal Feed Industry Factsheet 2020: Largest Animal Feed Manufacturers in the US & the WorldApprenticeship in Germany: Open for non-EU! All you need to know here!

MAX30100/102 Pulse Oximeter is integrated Pulse Oximetry and Heart Rate monitor sensor solutions. It operates with 1.8V to 3.3V power supply. Also, it can be powered down using software with negligible standby current, allowing the power supply to be connected all the time. The sensor combines two LEDs, a photodetector, optimized optics, and low-noise-analog signal processing to detect pulse and heart-rate signals.

How MAX30100/102 Pulse Oximeter works?

The MAX30100/102 Pulse Oximeter has two LEDs, in which one emits red light and the other emits infrared light. For pulse rate, only infrared light is required. But, both red light and infrared light are used to measure oxygen levels in the blood. When the heart pumps blood, there is more blood, which results in increased oxygen in the blood. When the heart rests, the amount of oxygenated blood also decreases. The pulse rate is determined by knowing the time between the rise and fall of oxygenated blood.

What is the main function of MAX30100/102 Pulse Oximeter?

Its main function is to read the absorption levels for both light sources and stored them in a buffer that can be read viaI2C. The oxygenated blood absorbs moreinfrared light. Hence, it passes morered lightwhile deoxygenated blood absorbs red light and passes more infrared light.

DS18B20 Temperature Sensor

IoT Based Patient Health Monitoring System Using ESP8266/ESP32 Web Server (4)

What is DS18B20 Temperature waterproof Sensor?

This is a pre-wired and waterproof version of the DS18B20 sensor. Useful when you need to measure something far away, or in wet conditions. The sensor can measure temperatures from -55 to 125°C(-67°F to +257°F). Actually, the cable of this sensor is jacketed in PVC.
DS18B20 is a digital sensor, hence there is no signal degradation over long distances. It is fairly precise, i.e±0.5°Cover much of the range. It provides up to 12 bits of precision from the onboard digital-to-analog converter. This sensor works great with any microcontroller using a single digital pin.

The downside is it uses theDallas 1-Wire protocol, which is somewhat complex and requires a bunch of code to communicate.

See Also
cmd: Alle Geräte - IP Adressen im Netzwerk anzeigen (finden)

DHT11 Temperature & Humidity Sensor

What DHT11 Sensor?

TheDHT11is a simple, ultra-low-cost digital temperature & humidity sensor. DHT11 uses a capacitivehumidity sensorand athermistorto measure the surrounding temperature and humidity. It sends data in digital signal form so no analog input pin is required.

IoT Based Patient Health Monitoring System Using ESP8266/ESP32 Web Server (5)

To grab data from DHT11 Sensor careful timing is required. It gets new data every 2 seconds. Hence, the readings of this sensor are always 2 seconds old.

To learn more about DHT11 Humidity/Temperature Sensor you can follow these posts:

  • NodeMCU ESP8266 Monitoring DHT11/DHT22 Temperature and Humidity with Local Web Server

Circuit Diagram: Patient Health Monitoring System on ESP8266/ESP32

Now let us begin designing IoT Based Patient Health Monitoring with ESP8266/ESP32 Web Server. So thecircuit diagramforinterfacing MAX30100, DHT11 & DS18B20withESP8266is given below.

IoT Based Patient Health Monitoring System Using ESP8266/ESP32 Web Server (6)
MAX30100 PinsNodeMCU ESP8266 Pins
SDAD2
SCLD1
INTD3
Vcc3.3V
GNDGND
DS18B20 PinsNodeMCU ESP8266 Pins
Vcc3.3V
GNDGND
SignalD4
DHT11 PinsNodeMCU ESP8266 PIns
Vcc3.3V
GNDGND
SignalD5

Similarly, thecircuit diagramforinterfacing MAX30100, DHT11 & DS18B20withESP32is provided below.

IoT Based Patient Health Monitoring System Using ESP8266/ESP32 Web Server (7)
MAX30100 PinsESP32 Pins
SDAGPIO21
SCLGPIO22
INTGPIO19
Vcc3.3V
GNDGND
DS18B20 PinsESP332 Pins
Vcc3.3V
GNDGND
SignalGPIO5
DHT11 PinsESP32 PIns
Vcc3.3V
GNDGND
SignalGPIO18

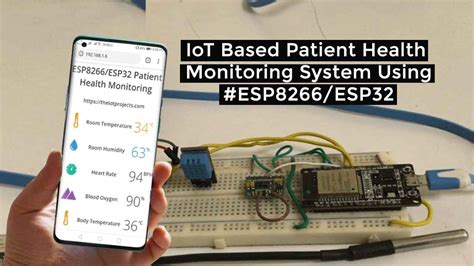

This is the circuit that I have assembled on a breadboard. This looks ugly and isn’t portable too. You can design custom PCBs for it.

IoT Based Patient Health Monitoring System Using ESP8266/ESP32 Web Server (8)

Source Code/Program

TheProgram/Source CodeforIoT Based Patient Health Monitoring System Using ESP8266/ESP32 Web Serveris provided below. To run this program code in your Arduino IDE you need to install a few libraries. Download all the libraries mentioned below and add them to your Arduino IDE.

Patient Health Monitoring System Program Code for ESP8266

Before Uploading Code Make changes in the WiFi Network SSID & Password.

#include <ESP8266WebServer.h>#include <Wire.h>#include "MAX30100_PulseOximeter.h"#include <OneWire.h>#include <DallasTemperature.h>//#include <dht.h>#include "DHT.h"#define DHTTYPE DHT11const int DHTPin = D5; #define DS18B20 D4#define REPORTING_PERIOD_MS 1000float temperature, humidity, BPM, SpO2, bodytemperature;/*Put your SSID & Password*/const char* ssid = "The IoT Projects"; // Enter SSID hereconst char* password = "[emailprotected]"; //Enter Password hereDHT dht(DHTPin, DHTTYPE); //--> Initialize DHT sensor, DHT dht(Pin_used, Type_of_DHT_Sensor);PulseOximeter pox;uint32_t tsLastReport = 0;OneWire oneWire(DS18B20);DallasTemperature sensors(&oneWire);ESP8266WebServer server(80);void onBeatDetected(){ Serial.println("Beat!");}void setup() { Serial.begin(115200); pinMode(D5, OUTPUT); delay(100); Serial.println("Connecting to "); Serial.println(ssid); //connect to your local wi-fi network WiFi.begin(ssid, password); //check wi-fi is connected to wi-fi network while (WiFi.status() != WL_CONNECTED) { delay(1000); Serial.print("."); } Serial.println(""); Serial.println("WiFi connected..!"); Serial.print("Got IP: "); Serial.println(WiFi.localIP()); server.on("/", handle_OnConnect); server.onNotFound(handle_NotFound); server.begin(); Serial.println("HTTP server started"); Serial.print("Initializing pulse oximeter.."); if (!pox.begin()) { Serial.println("FAILED"); for (;;); } else { Serial.println("SUCCESS"); pox.setOnBeatDetectedCallback(onBeatDetected); } pox.setIRLedCurrent(MAX30100_LED_CURR_7_6MA); // Register a callback for the beat detection}void loop() { server.handleClient(); pox.update(); sensors.requestTemperatures(); float t = dht.readTemperature(); String Temperature_Value = String(t); float h = dht.readHumidity(); String Humidity_Value = String(h); temperature = t; humidity = h; BPM = pox.getHeartRate(); SpO2 = pox.getSpO2(); bodytemperature = sensors.getTempCByIndex(0); if (millis() - tsLastReport > REPORTING_PERIOD_MS) { Serial.print("Room Temperature: "); Serial.print(t); Serial.println("°C"); Serial.print("Room Humidity: "); Serial.print(h); Serial.println("%"); Serial.print("BPM: "); Serial.println(BPM); Serial.print("SpO2: "); Serial.print(SpO2); Serial.println("%"); Serial.print("Body Temperature: "); Serial.print(bodytemperature); Serial.println("°C"); Serial.println("*********************************"); Serial.println(); tsLastReport = millis(); }}void handle_OnConnect() { server.send(200, "text/html", SendHTML(temperature, humidity, BPM, SpO2, bodytemperature));}void handle_NotFound() { server.send(404, "text/plain", "Not found");}String SendHTML(float temperature, float humidity, float BPM, float SpO2, float bodytemperature) { String ptr = "<!DOCTYPE html>"; ptr += "<html>"; ptr += "<head>"; ptr += "<title>ESP Patient Health Monitoring</title>"; ptr += "<meta name='viewport' content='width=device-width, initial-scale=1.0'>"; ptr += "<link href='https://fonts.googleapis.com/css?family=Open+Sans:300,400,600' rel='stylesheet'>"; ptr += "<style>"; ptr += "html { font-family: 'Open Sans', sans-serif; display: block; margin: 0px auto; text-align: center;color: #444444;}"; ptr += "body{margin: 0px;} "; ptr += "h1 {margin: 50px auto 30px;} "; ptr += ".side-by-side{display: table-cell;vertical-align: middle;position: relative;}"; ptr += ".text{font-weight: 600;font-size: 19px;width: 200px;}"; ptr += ".reading{font-weight: 300;font-size: 50px;padding-right: 25px;}"; ptr += ".temperature .reading{color: #F29C1F;}"; ptr += ".humidity .reading{color: #3B97D3;}"; ptr += ".BPM .reading{color: #FF0000;}"; ptr += ".SpO2 .reading{color: #955BA5;}"; ptr += ".bodytemperature .reading{color: #F29C1F;}"; ptr += ".superscript{font-size: 17px;font-weight: 600;position: absolute;top: 10px;}"; ptr += ".data{padding: 10px;}"; ptr += ".container{display: table;margin: 0 auto;}"; ptr += ".icon{width:65px}"; ptr += "</style>"; ptr += "</head>"; ptr += "<body>"; ptr += "<h1>ESP8266/ESP32 Patient Health Monitoring</h1>"; ptr += "<h3>https://theiotprojects.com</a></h3>"; ptr += "<div class='container'>"; ptr += "<div class='data temperature'>"; ptr += "<div class='side-by-side icon'>"; ptr += "<svg enable-background='new 0 0 19.438 54.003'height=54.003px id=Layer_1 version=1.1 viewBox='0 0 19.438 54.003'width=19.438px x=0px xml:space=preserve xmlns=http://www.w3.org/2000/svg xmlns:xlink=http://www.w3.org/1999/xlink y=0px><g><path d='M11.976,8.82v-2h4.084V6.063C16.06,2.715,13.345,0,9.996,0H9.313C5.965,0,3.252,2.715,3.252,6.063v30.982"; ptr += "C1.261,38.825,0,41.403,0,44.286c0,5.367,4.351,9.718,9.719,9.718c5.368,0,9.719-4.351,9.719-9.718"; ptr += "c0-2.943-1.312-5.574-3.378-7.355V18.436h-3.914v-2h3.914v-2.808h-4.084v-2h4.084V8.82H11.976z M15.302,44.833"; ptr += "c0,3.083-2.5,5.583-5.583,5.583s-5.583-2.5-5.583-5.583c0-2.279,1.368-4.236,3.326-5.104V24.257C7.462,23.01,8.472,22,9.719,22"; ptr += "s2.257,1.01,2.257,2.257V39.73C13.934,40.597,15.302,42.554,15.302,44.833z'fill=#F29C21 /></g></svg>"; ptr += "</div>"; ptr += "<div class='side-by-side text'>Room Temperature</div>"; ptr += "<div class='side-by-side reading'>"; //ptr += (int)temperature; ptr += (int)35; ptr += "<span class='superscript'>°C</span></div>"; ptr += "</div>"; ptr += "<div class='data humidity'>"; ptr += "<div class='side-by-side icon'>"; ptr += "<svg enable-background='new 0 0 29.235 40.64'height=40.64px id=Layer_1 version=1.1 viewBox='0 0 29.235 40.64'width=29.235px x=0px xml:space=preserve xmlns=http://www.w3.org/2000/svg xmlns:xlink=http://www.w3.org/1999/xlink y=0px><path d='M14.618,0C14.618,0,0,17.95,0,26.022C0,34.096,6.544,40.64,14.618,40.64s14.617-6.544,14.617-14.617"; ptr += "C29.235,17.95,14.618,0,14.618,0z M13.667,37.135c-5.604,0-10.162-4.56-10.162-10.162c0-0.787,0.638-1.426,1.426-1.426"; ptr += "c0.787,0,1.425,0.639,1.425,1.426c0,4.031,3.28,7.312,7.311,7.312c0.787,0,1.425,0.638,1.425,1.425"; ptr += "C15.093,36.497,14.455,37.135,13.667,37.135z'fill=#3C97D3 /></svg>"; ptr += "</div>"; ptr += "<div class='side-by-side text'>Room Humidity</div>"; ptr += "<div class='side-by-side reading'>"; //ptr += (int)humidity; ptr += (int)60; ptr += "<span class='superscript'>%</span></div>"; ptr += "</div>"; ptr += "<div class='data Heart Rate'>"; ptr += "<div class='side-by-side icon'>"; ptr += "<svg enable-background='new 0 0 40.542 40.541'height=40.541px id=Layer_1 version=1.1 viewBox='0 0 40.542 40.541'width=40.542px x=0px xml:space=preserve xmlns=http://www.w3.org/2000/svg xmlns:xlink=http://www.w3.org/1999/xlink y=0px><g><path d='M34.313,20.271c0-0.552,0.447-1,1-1h5.178c-0.236-4.841-2.163-9.228-5.214-12.593l-3.425,3.424"; ptr += "c-0.195,0.195-0.451,0.293-0.707,0.293s-0.512-0.098-0.707-0.293c-0.391-0.391-0.391-1.023,0-1.414l3.425-3.424"; ptr += "c-3.375-3.059-7.776-4.987-12.634-5.215c0.015,0.067,0.041,0.13,0.041,0.202v4.687c0,0.552-0.447,1-1,1s-1-0.448-1-1V0.25"; ptr += "c0-0.071,0.026-0.134,0.041-0.202C14.39,0.279,9.936,2.256,6.544,5.385l3.576,3.577c0.391,0.391,0.391,1.024,0,1.414"; ptr += "c-0.195,0.195-0.451,0.293-0.707,0.293s-0.512-0.098-0.707-0.293L5.142,6.812c-2.98,3.348-4.858,7.682-5.092,12.459h4.804"; ptr += "c0.552,0,1,0.448,1,1s-0.448,1-1,1H0.05c0.525,10.728,9.362,19.271,20.22,19.271c10.857,0,19.696-8.543,20.22-19.271h-5.178"; ptr += "C34.76,21.271,34.313,20.823,34.313,20.271z M23.084,22.037c-0.559,1.561-2.274,2.372-3.833,1.814"; ptr += "c-1.561-0.557-2.373-2.272-1.815-3.833c0.372-1.041,1.263-1.737,2.277-1.928L25.2,7.202L22.497,19.05"; ptr += "C23.196,19.843,23.464,20.973,23.084,22.037z'fill=#26B999 /></g></svg>"; ptr += "</div>"; ptr += "<div class='side-by-side text'>Heart Rate</div>"; ptr += "<div class='side-by-side reading'>"; ptr += (int)BPM; ptr += "<span class='superscript'>BPM</span></div>"; ptr += "</div>"; ptr += "<div class='data Blood Oxygen'>"; ptr += "<div class='side-by-side icon'>"; ptr += "<svg enable-background='new 0 0 58.422 40.639'height=40.639px id=Layer_1 version=1.1 viewBox='0 0 58.422 40.639'width=58.422px x=0px xml:space=preserve xmlns=http://www.w3.org/2000/svg xmlns:xlink=http://www.w3.org/1999/xlink y=0px><g><path d='M58.203,37.754l0.007-0.004L42.09,9.935l-0.001,0.001c-0.356-0.543-0.969-0.902-1.667-0.902"; ptr += "c-0.655,0-1.231,0.32-1.595,0.808l-0.011-0.007l-0.039,0.067c-0.021,0.03-0.035,0.063-0.054,0.094L22.78,37.692l0.008,0.004"; ptr += "c-0.149,0.28-0.242,0.594-0.242,0.934c0,1.102,0.894,1.995,1.994,1.995v0.015h31.888c1.101,0,1.994-0.893,1.994-1.994"; ptr += "C58.422,38.323,58.339,38.024,58.203,37.754z'fill=#955BA5 /><path d='M19.704,38.674l-0.013-0.004l13.544-23.522L25.13,1.156l-0.002,0.001C24.671,0.459,23.885,0,22.985,0"; ptr += "c-0.84,0-1.582,0.41-2.051,1.038l-0.016-0.01L20.87,1.114c-0.025,0.039-0.046,0.082-0.068,0.124L0.299,36.851l0.013,0.004"; ptr += "C0.117,37.215,0,37.62,0,38.059c0,1.412,1.147,2.565,2.565,2.565v0.015h16.989c-0.091-0.256-0.149-0.526-0.149-0.813"; ptr += "C19.405,39.407,19.518,39.019,19.704,38.674z'fill=#955BA5 /></g></svg>"; ptr += "</div>"; ptr += "<div class='side-by-side text'>Blood Oxygen</div>"; ptr += "<div class='side-by-side reading'>"; ptr += (int)SpO2; ptr += "<span class='superscript'>%</span></div>"; ptr += "</div>"; ptr += "<div class='data Body Temperature'>"; ptr += "<div class='side-by-side icon'>"; ptr += "<svg enable-background='new 0 0 19.438 54.003'height=54.003px id=Layer_1 version=1.1 viewBox='0 0 19.438 54.003'width=19.438px x=0px xml:space=preserve xmlns=http://www.w3.org/2000/svg xmlns:xlink=http://www.w3.org/1999/xlink y=0px><g><path d='M11.976,8.82v-2h4.084V6.063C16.06,2.715,13.345,0,9.996,0H9.313C5.965,0,3.252,2.715,3.252,6.063v30.982"; ptr += "C1.261,38.825,0,41.403,0,44.286c0,5.367,4.351,9.718,9.719,9.718c5.368,0,9.719-4.351,9.719-9.718"; ptr += "c0-2.943-1.312-5.574-3.378-7.355V18.436h-3.914v-2h3.914v-2.808h-4.084v-2h4.084V8.82H11.976z M15.302,44.833"; ptr += "c0,3.083-2.5,5.583-5.583,5.583s-5.583-2.5-5.583-5.583c0-2.279,1.368-4.236,3.326-5.104V24.257C7.462,23.01,8.472,22,9.719,22"; ptr += "s2.257,1.01,2.257,2.257V39.73C13.934,40.597,15.302,42.554,15.302,44.833z'fill=#F29C21 /></g></svg>"; ptr += "</div>"; ptr += "<div class='side-by-side text'>Body Temperature</div>"; ptr += "<div class='side-by-side reading'>"; ptr += (int)bodytemperature; ptr += "<span class='superscript'>°C</span></div>"; ptr += "</div>"; ptr += "</div>"; ptr += "</body>"; ptr += "</html>"; return ptr;}

Patient Health Monitoring System Program Code for ESP32

Before Uploading Code Make changes in the WiFi Network SSID & Password.

#include <WiFi.h>#include <WebServer.h>#include <Wire.h>#include "MAX30100_PulseOximeter.h"#include <OneWire.h>#include <DallasTemperature.h>#include <dht.h> #define DHT11_PIN 18#define DS18B20 5#define REPORTING_PERIOD_MS 1000 float temperature, humidity, BPM, SpO2, bodytemperature; /*Put your SSID & Password*/const char* ssid = "The IoT Projects"; // Enter SSID hereconst char* password = "[emailprotected]"; //Enter Password here dht DHT;PulseOximeter pox;uint32_t tsLastReport = 0;OneWire oneWire(DS18B20);DallasTemperature sensors(&oneWire); WebServer server(80); void onBeatDetected(){ Serial.println("Beat!");} void setup() { Serial.begin(115200); pinMode(19, OUTPUT); delay(100); Serial.println("Connecting to "); Serial.println(ssid); //connect to your local wi-fi network WiFi.begin(ssid, password); //check wi-fi is connected to wi-fi network while (WiFi.status() != WL_CONNECTED) { delay(1000); Serial.print("."); } Serial.println(""); Serial.println("WiFi connected..!"); Serial.print("Got IP: "); Serial.println(WiFi.localIP()); server.on("/", handle_OnConnect); server.onNotFound(handle_NotFound); server.begin(); Serial.println("HTTP server started"); Serial.print("Initializing pulse oximeter.."); if (!pox.begin()) { Serial.println("FAILED"); for (;;); } else { Serial.println("SUCCESS"); pox.setOnBeatDetectedCallback(onBeatDetected); } pox.setIRLedCurrent(MAX30100_LED_CURR_7_6MA); // Register a callback for the beat detection }void loop() { server.handleClient(); pox.update(); sensors.requestTemperatures(); int chk = DHT.read11(DHT11_PIN); temperature = DHT.temperature; humidity = DHT.humidity; BPM = pox.getHeartRate(); SpO2 = pox.getSpO2(); bodytemperature = sensors.getTempCByIndex(0); if (millis() - tsLastReport > REPORTING_PERIOD_MS) { Serial.print("Room Temperature: "); Serial.print(DHT.temperature); Serial.println("°C"); Serial.print("Room Humidity: "); Serial.print(DHT.humidity); Serial.println("%"); Serial.print("BPM: "); Serial.println(BPM); Serial.print("SpO2: "); Serial.print(SpO2); Serial.println("%"); Serial.print("Body Temperature: "); Serial.print(bodytemperature); Serial.println("°C"); Serial.println("*********************************"); Serial.println(); tsLastReport = millis(); } } void handle_OnConnect() { server.send(200, "text/html", SendHTML(temperature, humidity, BPM, SpO2, bodytemperature)); } void handle_NotFound(){ server.send(404, "text/plain", "Not found");} String SendHTML(float temperature,float humidity,float BPM,float SpO2, float bodytemperature){ String ptr = "<!DOCTYPE html>"; ptr +="<html>"; ptr +="<head>"; ptr +="<title>ESP Patient Health Monitoring</title>"; ptr +="<meta name='viewport' content='width=device-width, initial-scale=1.0'>"; ptr +="<link href='https://fonts.googleapis.com/css?family=Open+Sans:300,400,600' rel='stylesheet'>"; ptr +="<style>"; ptr +="html { font-family: 'Open Sans', sans-serif; display: block; margin: 0px auto; text-align: center;color: #444444;}"; ptr +="body{margin: 0px;} "; ptr +="h1 {margin: 50px auto 30px;} "; ptr +=".side-by-side{display: table-cell;vertical-align: middle;position: relative;}"; ptr +=".text{font-weight: 600;font-size: 19px;width: 200px;}"; ptr +=".reading{font-weight: 300;font-size: 50px;padding-right: 25px;}"; ptr +=".temperature .reading{color: #F29C1F;}"; ptr +=".humidity .reading{color: #3B97D3;}"; ptr +=".BPM .reading{color: #FF0000;}"; ptr +=".SpO2 .reading{color: #955BA5;}"; ptr +=".bodytemperature .reading{color: #F29C1F;}"; ptr +=".superscript{font-size: 17px;font-weight: 600;position: absolute;top: 10px;}"; ptr +=".data{padding: 10px;}"; ptr +=".container{display: table;margin: 0 auto;}"; ptr +=".icon{width:65px}"; ptr +="</style>"; ptr +="</head>"; ptr +="<body>"; ptr +="<h1>ESP8266/ESP32 Patient Health Monitoring</h1>"; ptr +="<h3>https://theiotprojects.com</h3>"; ptr +="<div class='container'>"; ptr +="<div class='data temperature'>"; ptr +="<div class='side-by-side icon'>"; ptr +="<svg enable-background='new 0 0 19.438 54.003'height=54.003px id=Layer_1 version=1.1 viewBox='0 0 19.438 54.003'width=19.438px x=0px xml:space=preserve xmlns=http://www.w3.org/2000/svg xmlns:xlink=http://www.w3.org/1999/xlink y=0px><g><path d='M11.976,8.82v-2h4.084V6.063C16.06,2.715,13.345,0,9.996,0H9.313C5.965,0,3.252,2.715,3.252,6.063v30.982"; ptr +="C1.261,38.825,0,41.403,0,44.286c0,5.367,4.351,9.718,9.719,9.718c5.368,0,9.719-4.351,9.719-9.718"; ptr +="c0-2.943-1.312-5.574-3.378-7.355V18.436h-3.914v-2h3.914v-2.808h-4.084v-2h4.084V8.82H11.976z M15.302,44.833"; ptr +="c0,3.083-2.5,5.583-5.583,5.583s-5.583-2.5-5.583-5.583c0-2.279,1.368-4.236,3.326-5.104V24.257C7.462,23.01,8.472,22,9.719,22"; ptr +="s2.257,1.01,2.257,2.257V39.73C13.934,40.597,15.302,42.554,15.302,44.833z'fill=#F29C21 /></g></svg>"; ptr +="</div>"; ptr +="<div class='side-by-side text'>Room Temperature</div>"; ptr +="<div class='side-by-side reading'>"; ptr +=(int)temperature; ptr +="<span class='superscript'>°C</span></div>"; ptr +="</div>"; ptr +="<div class='data humidity'>"; ptr +="<div class='side-by-side icon'>"; ptr +="<svg enable-background='new 0 0 29.235 40.64'height=40.64px id=Layer_1 version=1.1 viewBox='0 0 29.235 40.64'width=29.235px x=0px xml:space=preserve xmlns=http://www.w3.org/2000/svg xmlns:xlink=http://www.w3.org/1999/xlink y=0px><path d='M14.618,0C14.618,0,0,17.95,0,26.022C0,34.096,6.544,40.64,14.618,40.64s14.617-6.544,14.617-14.617"; ptr +="C29.235,17.95,14.618,0,14.618,0z M13.667,37.135c-5.604,0-10.162-4.56-10.162-10.162c0-0.787,0.638-1.426,1.426-1.426"; ptr +="c0.787,0,1.425,0.639,1.425,1.426c0,4.031,3.28,7.312,7.311,7.312c0.787,0,1.425,0.638,1.425,1.425"; ptr +="C15.093,36.497,14.455,37.135,13.667,37.135z'fill=#3C97D3 /></svg>"; ptr +="</div>"; ptr +="<div class='side-by-side text'>Room Humidity</div>"; ptr +="<div class='side-by-side reading'>"; ptr +=(int)humidity; ptr +="<span class='superscript'>%</span></div>"; ptr +="</div>"; ptr +="<div class='data Heart Rate'>"; ptr +="<div class='side-by-side icon'>"; ptr +="<svg enable-background='new 0 0 40.542 40.541'height=40.541px id=Layer_1 version=1.1 viewBox='0 0 40.542 40.541'width=40.542px x=0px xml:space=preserve xmlns=http://www.w3.org/2000/svg xmlns:xlink=http://www.w3.org/1999/xlink y=0px><g><path d='M34.313,20.271c0-0.552,0.447-1,1-1h5.178c-0.236-4.841-2.163-9.228-5.214-12.593l-3.425,3.424"; ptr +="c-0.195,0.195-0.451,0.293-0.707,0.293s-0.512-0.098-0.707-0.293c-0.391-0.391-0.391-1.023,0-1.414l3.425-3.424"; ptr +="c-3.375-3.059-7.776-4.987-12.634-5.215c0.015,0.067,0.041,0.13,0.041,0.202v4.687c0,0.552-0.447,1-1,1s-1-0.448-1-1V0.25"; ptr +="c0-0.071,0.026-0.134,0.041-0.202C14.39,0.279,9.936,2.256,6.544,5.385l3.576,3.577c0.391,0.391,0.391,1.024,0,1.414"; ptr +="c-0.195,0.195-0.451,0.293-0.707,0.293s-0.512-0.098-0.707-0.293L5.142,6.812c-2.98,3.348-4.858,7.682-5.092,12.459h4.804"; ptr +="c0.552,0,1,0.448,1,1s-0.448,1-1,1H0.05c0.525,10.728,9.362,19.271,20.22,19.271c10.857,0,19.696-8.543,20.22-19.271h-5.178"; ptr +="C34.76,21.271,34.313,20.823,34.313,20.271z M23.084,22.037c-0.559,1.561-2.274,2.372-3.833,1.814"; ptr +="c-1.561-0.557-2.373-2.272-1.815-3.833c0.372-1.041,1.263-1.737,2.277-1.928L25.2,7.202L22.497,19.05"; ptr +="C23.196,19.843,23.464,20.973,23.084,22.037z'fill=#26B999 /></g></svg>"; ptr +="</div>"; ptr +="<div class='side-by-side text'>Heart Rate</div>"; ptr +="<div class='side-by-side reading'>"; ptr +=(int)BPM; ptr +="<span class='superscript'>BPM</span></div>"; ptr +="</div>"; ptr +="<div class='data Blood Oxygen'>"; ptr +="<div class='side-by-side icon'>"; ptr +="<svg enable-background='new 0 0 58.422 40.639'height=40.639px id=Layer_1 version=1.1 viewBox='0 0 58.422 40.639'width=58.422px x=0px xml:space=preserve xmlns=http://www.w3.org/2000/svg xmlns:xlink=http://www.w3.org/1999/xlink y=0px><g><path d='M58.203,37.754l0.007-0.004L42.09,9.935l-0.001,0.001c-0.356-0.543-0.969-0.902-1.667-0.902"; ptr +="c-0.655,0-1.231,0.32-1.595,0.808l-0.011-0.007l-0.039,0.067c-0.021,0.03-0.035,0.063-0.054,0.094L22.78,37.692l0.008,0.004"; ptr +="c-0.149,0.28-0.242,0.594-0.242,0.934c0,1.102,0.894,1.995,1.994,1.995v0.015h31.888c1.101,0,1.994-0.893,1.994-1.994"; ptr +="C58.422,38.323,58.339,38.024,58.203,37.754z'fill=#955BA5 /><path d='M19.704,38.674l-0.013-0.004l13.544-23.522L25.13,1.156l-0.002,0.001C24.671,0.459,23.885,0,22.985,0"; ptr +="c-0.84,0-1.582,0.41-2.051,1.038l-0.016-0.01L20.87,1.114c-0.025,0.039-0.046,0.082-0.068,0.124L0.299,36.851l0.013,0.004"; ptr +="C0.117,37.215,0,37.62,0,38.059c0,1.412,1.147,2.565,2.565,2.565v0.015h16.989c-0.091-0.256-0.149-0.526-0.149-0.813"; ptr +="C19.405,39.407,19.518,39.019,19.704,38.674z'fill=#955BA5 /></g></svg>"; ptr +="</div>"; ptr +="<div class='side-by-side text'>Blood Oxygen</div>"; ptr +="<div class='side-by-side reading'>"; ptr +=(int)SpO2; ptr +="<span class='superscript'>%</span></div>"; ptr +="</div>"; ptr +="<div class='data Body Temperature'>"; ptr +="<div class='side-by-side icon'>"; ptr +="<svg enable-background='new 0 0 19.438 54.003'height=54.003px id=Layer_1 version=1.1 viewBox='0 0 19.438 54.003'width=19.438px x=0px xml:space=preserve xmlns=http://www.w3.org/2000/svg xmlns:xlink=http://www.w3.org/1999/xlink y=0px><g><path d='M11.976,8.82v-2h4.084V6.063C16.06,2.715,13.345,0,9.996,0H9.313C5.965,0,3.252,2.715,3.252,6.063v30.982"; ptr +="C1.261,38.825,0,41.403,0,44.286c0,5.367,4.351,9.718,9.719,9.718c5.368,0,9.719-4.351,9.719-9.718"; ptr +="c0-2.943-1.312-5.574-3.378-7.355V18.436h-3.914v-2h3.914v-2.808h-4.084v-2h4.084V8.82H11.976z M15.302,44.833"; ptr +="c0,3.083-2.5,5.583-5.583,5.583s-5.583-2.5-5.583-5.583c0-2.279,1.368-4.236,3.326-5.104V24.257C7.462,23.01,8.472,22,9.719,22"; ptr +="s2.257,1.01,2.257,2.257V39.73C13.934,40.597,15.302,42.554,15.302,44.833z'fill=#F29C21 /></g></svg>"; ptr +="</div>"; ptr +="<div class='side-by-side text'>Body Temperature</div>"; ptr +="<div class='side-by-side reading'>"; ptr +=(int)bodytemperature; ptr +="<span class='superscript'>°C</span></div>"; ptr +="</div>"; ptr +="</div>"; ptr +="</body>"; ptr +="</html>"; return ptr;}

Project Demonstration

Once the code is uploaded to your respective board, you can open the serial monitor to see the program into action. The NodeMCU ESP8266/ESP32 will try to connect to your WiFi Network. Once connected, it will display the ESP IP Address.

IoT Based Patient Health Monitoring System Using ESP8266/ESP32 Web Server (9)

Now, copy the ESP8266/ESP32 IP Address and paste on Web Browser. It will display you the room temperature, room humidity, Heart Rate, Blood Oxygen Level, and Body Temperature, etc. as shown in the below images.

IoT Based Patient Health Monitoring System Using ESP8266/ESP32 Web Server (10)

Similarly, you can monitor your patient’s health from any device that features a browser. The below image is the view of the Patient Health Status on Android SmartPhone. Simply copy the ESP IP Address and paste on the browser of any device.

IoT Based Patient Health Monitoring System Using ESP8266/ESP32 Web Server (11)

Conclusion

In this tutorial, we have shown you how to make IoT Based Patient Health Monitoring System Using ESP8266/ESP32 Web Server. I hope this tutorial was interesting to you. If you need any type of help related to this project then do let me know in the comment section below.
